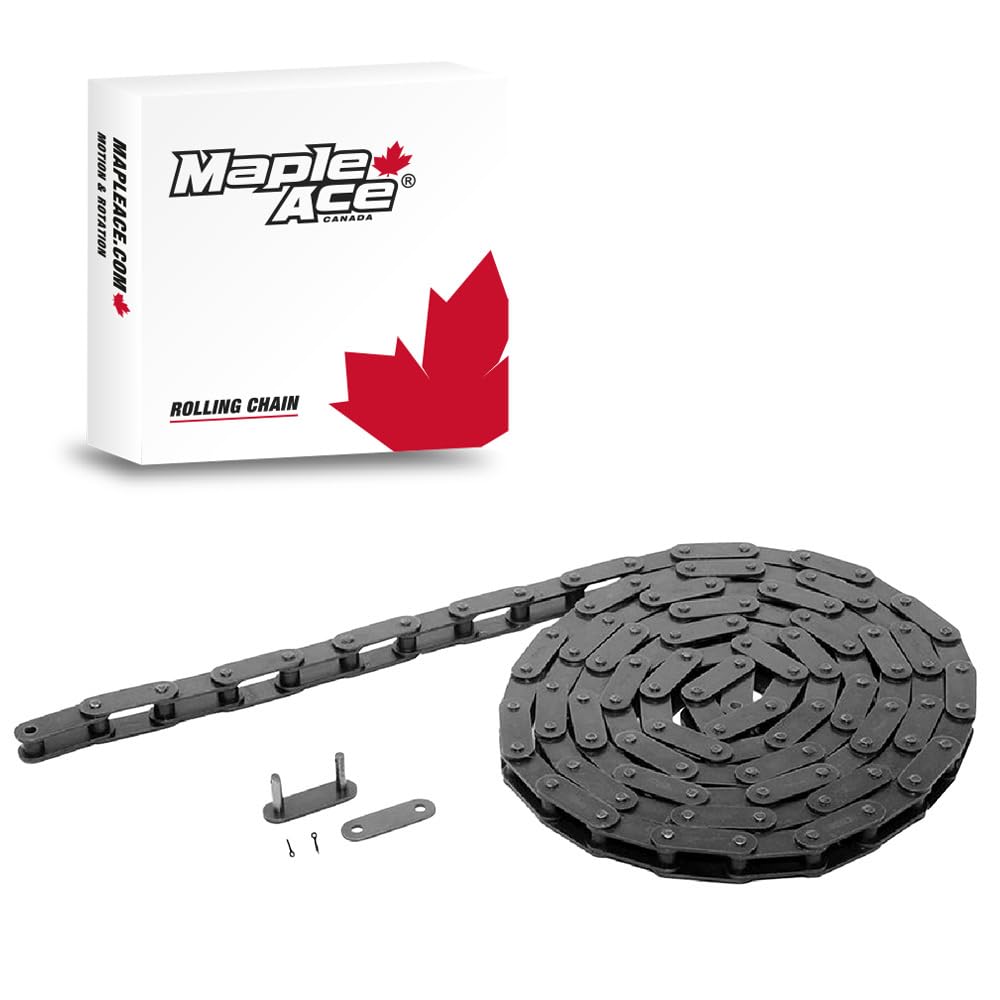

MAPLE ACE CA557 Agricultural Roller Chain 10 Feet Plus Connecting Master Link

All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant. Higher tensile strength for superior impact resistance. Heat treatment to achieve ideal hardness. Every package contains a 10-feet chain and connecting link. Additional connecting and offset links can be bought separately at our store. The chain can be cut to desired length using a Chain Breaker. - Specification: Item CA557, Chain Length 10 ft, Number of Strands 1, Chain Pitch Metric 41.4 mm, Chain Pitch Inch 1.63 in, Roller diameter d1 max Metric 17.78 mm, Roller diameter d1 max Inch 0.7 in, Width between inner plates b1 min Metric 20.24 mm, Width between inner plates b1 min Inch 0.80 in, Pin diameter d2 max Metric 8.00 mm, Pin diameter d2 max Inch 0.314 in, Pin length L max Metric 37.4 mm, Pin length L max Inch 1.472 in, Pin length Lc max Metric 40.6 mm, Pin length Lc max Inch 1.6 in, Plate height h2 max Metric 23.10 mm, Plate height h2 max Inch 0.91 in, Plate thickness T max Metric 3.10 mm, Plate thickness T max Inch 1.22 in, Ultimate Tensile Strength Q min 55.61/12.639 kN/LB, Average Tensile Strength Q0 74.30 kN, Weight (kg/m) 2.600 kg, Weight (lbs/ft) 1.75 lbs, Material Carbon/Alloy Steel. - Interchange: - Application:

• CA557 Agricultural Roller Chain is a 1-5/8 inch pitch
• Interchange to CA557, CA557D
• Agricultural Roller Chain is characterized by its durability, resistance to wear, and ability to withstand the harsh conditions often encountered in agricultural environments, such as exposure to dirt, debris, and varying weather conditions.
• Application: Combine Harvesters, Balers, Forage Harvesters, Manure Spreaders, Planters and Seeders, Grain Handling Equipment, Crop Processing Equipment, Conveyor and Elevators Systems in Agriculture
• Specializing in the Exclusive Production of Chains with High Performance and Long Life.
